Product Description

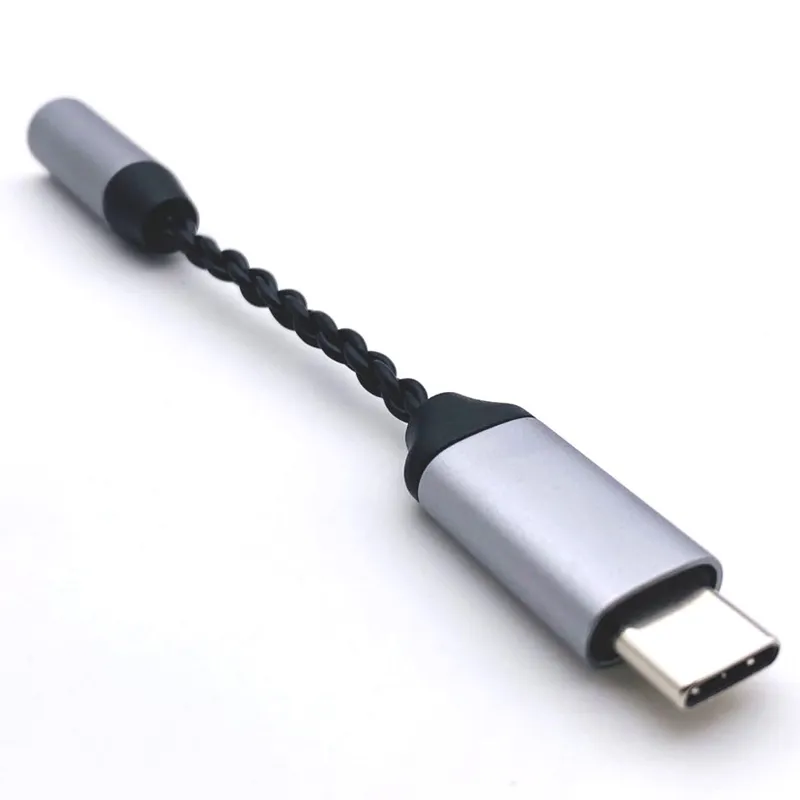

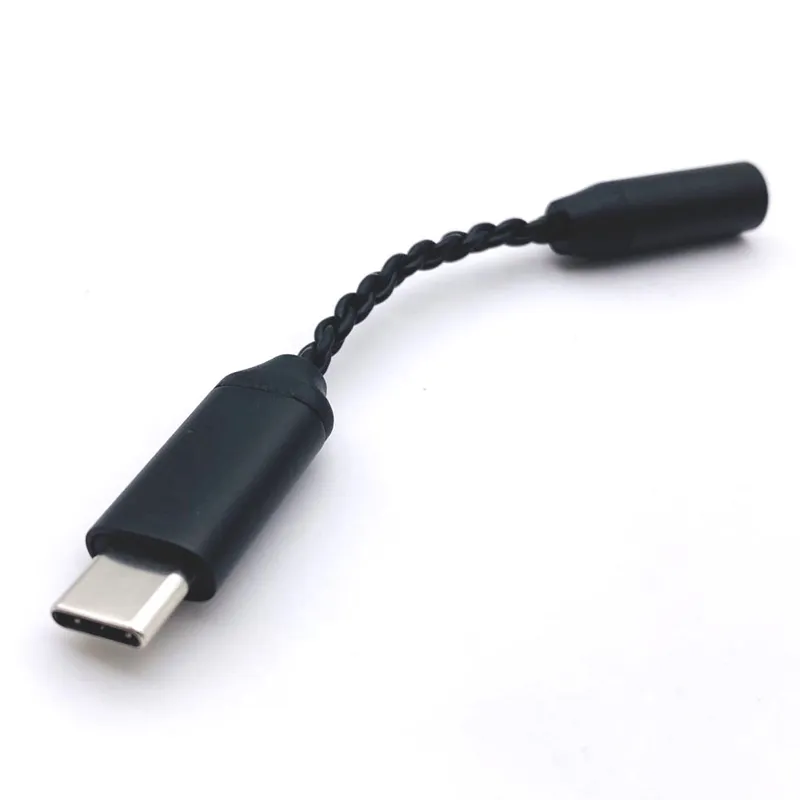

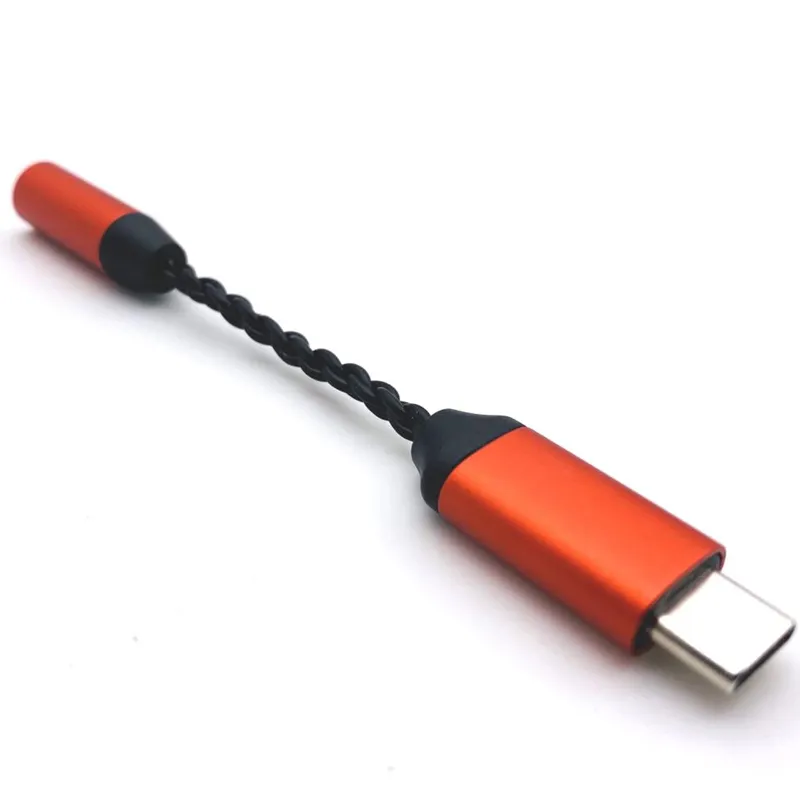

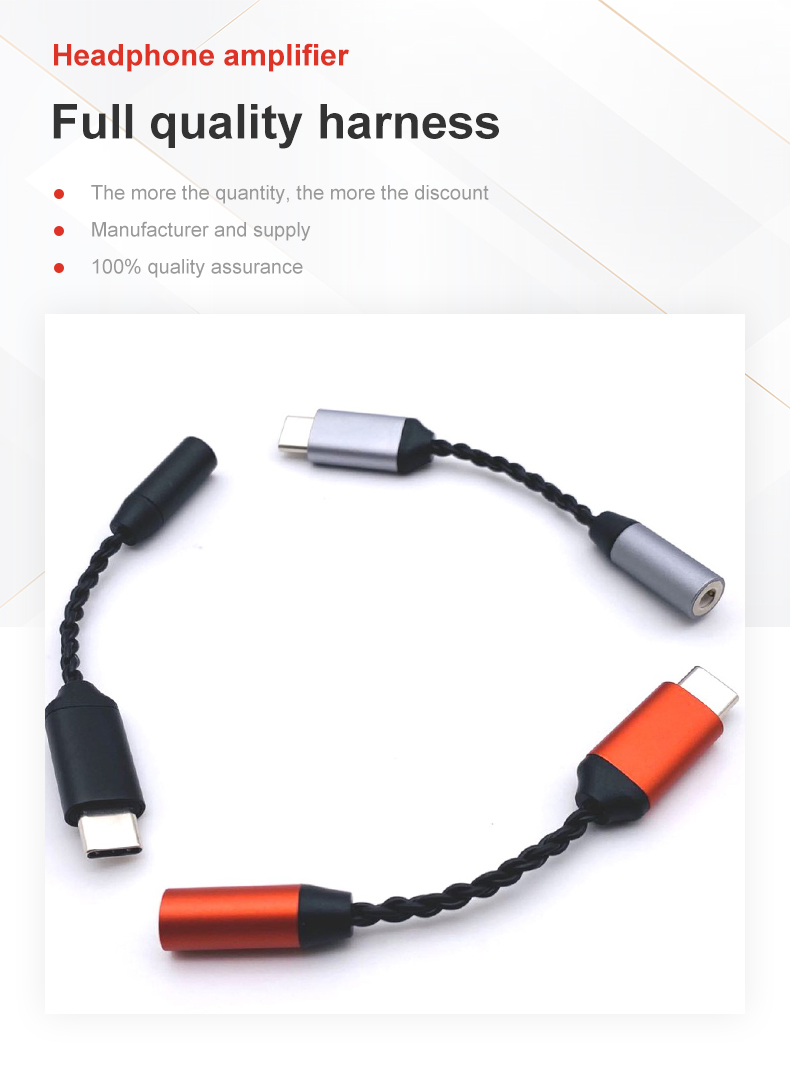

Type C Male to 3.5mm Female Audio Aux Cable with DAC Chip
Audio Visual Cables Application:  Enjoying the astonishing Hi Resolution audio everywhere with the aid of this cable just plugging in your phone / tablet/ MAC book or even your PC.    It works.
TV Harness Cable: Stranded OFC 99.99% wire with PVC Braided jacket
AV Harness Connector1: Imported 3.5mm female jack from Taiwan for longest durability
Connector2: TYPE-C with TID certificate & DAC Chip PCBA supporting 32bit / 384kHz
Molding and cable can be customized as requested
Can provide individual or blister packaging by requested
Full inspection before shipment
Flexible MOQ, short lead time
RoHS & REACH standard
OEM & ODM are welcome
Specification
Frequency: 20Hz~40khz
Impedance: 16Ω~150Ω
Maximum output: 35mW*2
THD: -90dB (1kHz / 0db)
SNR: 96dB (1kHz / 0db)
Output terminal : Headphone jack (3.5mm, 4pole)
Input terminal : USB Type-C
Size: About L120 W12  H8.5mm
Weight : <8g
Features
USB Type-C TID certification (TID: 5200000354)
Fully Compliant with USB 2.0 with USB Link Power Management (L0 to L3)
USB Audio Class 2.0 / 1.0
USB Type-C Digital-to-Analog Converter
Plays all music files: MP3 to high-res
Support for Mac and Android mobile phone through the USB device directly output 3.5 mm
Drives headphones directly
Variable output drives active speakers or amplifiers
High output drives almost all headphones
One-Chip USB audio codec
Supports the highest resolution specification of 32bit / 384kHz
Optimize the output quality of the computer sound files from the sound card
USB Type-C interface plug and play settings simple
The smallest USB Type-C ear expansion
Low frequency full of strong high-frequency soft and dense
