Heavy-Duty Industrial Cable for Precision Equipment Control

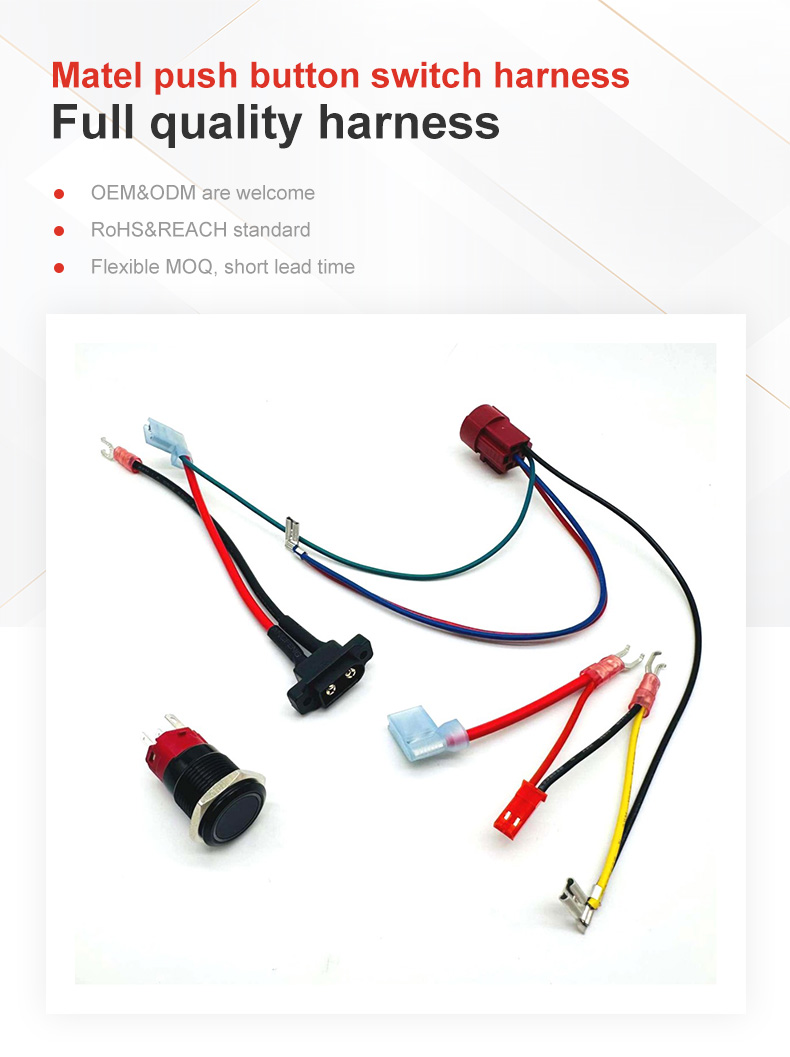

Meet our Metal Push Button Switch Harness, a rugged Industrial Cable solution engineered for demanding machinery and control systems. Designed as a Custom Cable for client-specific devices, this harness integrates high-current switches and versatile connectors to streamline operations in automation, manufacturing, and heavy equipment. Built with UL-certified wiring and IP-rated components, it ensures reliable power delivery, signal accuracy, and resistance to heat, oils, and vibrations—perfect for CNC machines, agricultural controllers, or industrial dashboards.

Military-Grade Components & Technical Specifications

• Cables:

• UL1015#16AWG*3C: 16-gauge, 3-core cable for high-current circuits (up to 13A).

• 1007#20*5C: 20AWG, 5-core shielded cable for low-voltage signal control.

• 3239#20*2C: High-flex 20AWG, 2-core cable for repetitive motion applications.

• Connectors:

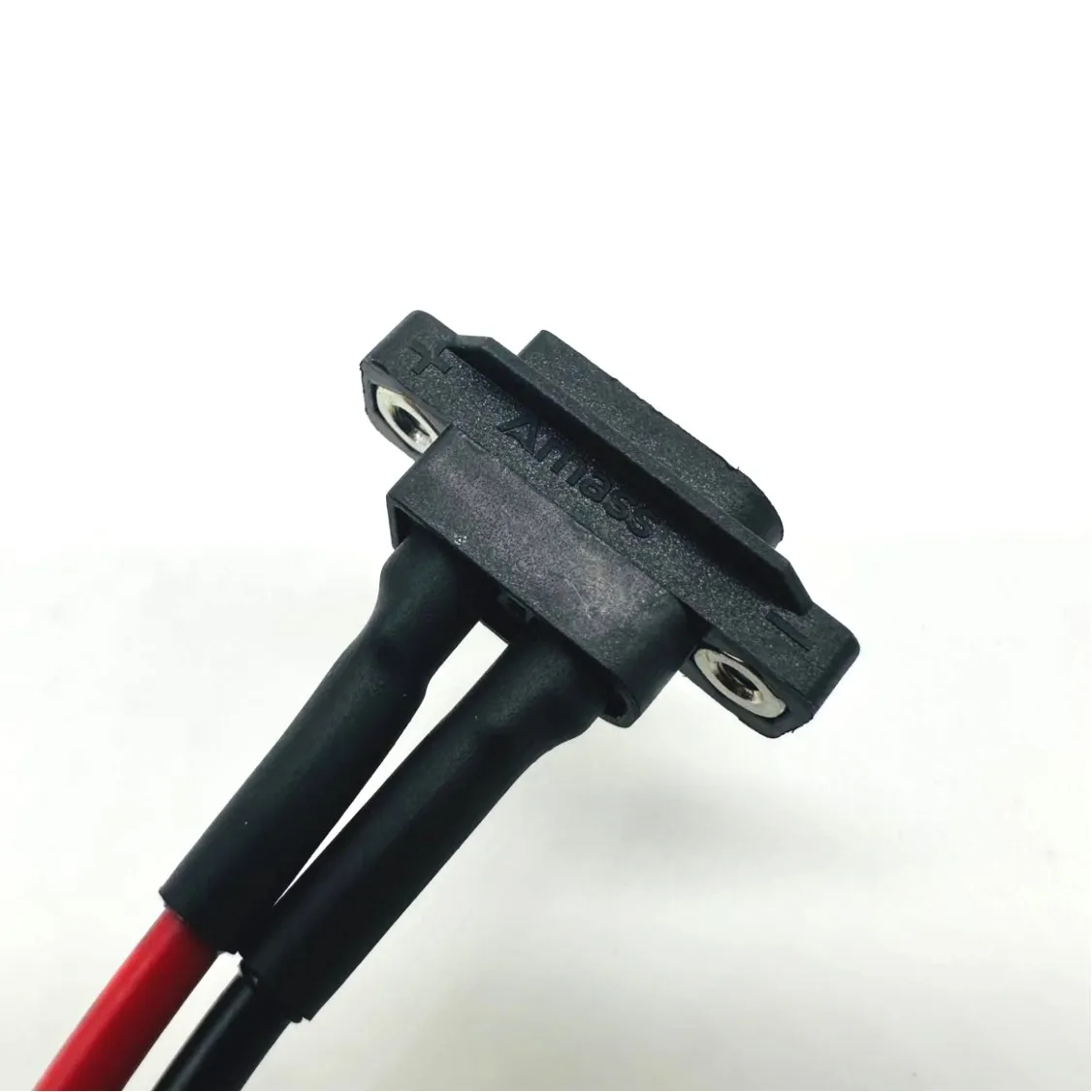

• Connector 1: Amass XT60 jack (30A rating) for secure, high-power connections.

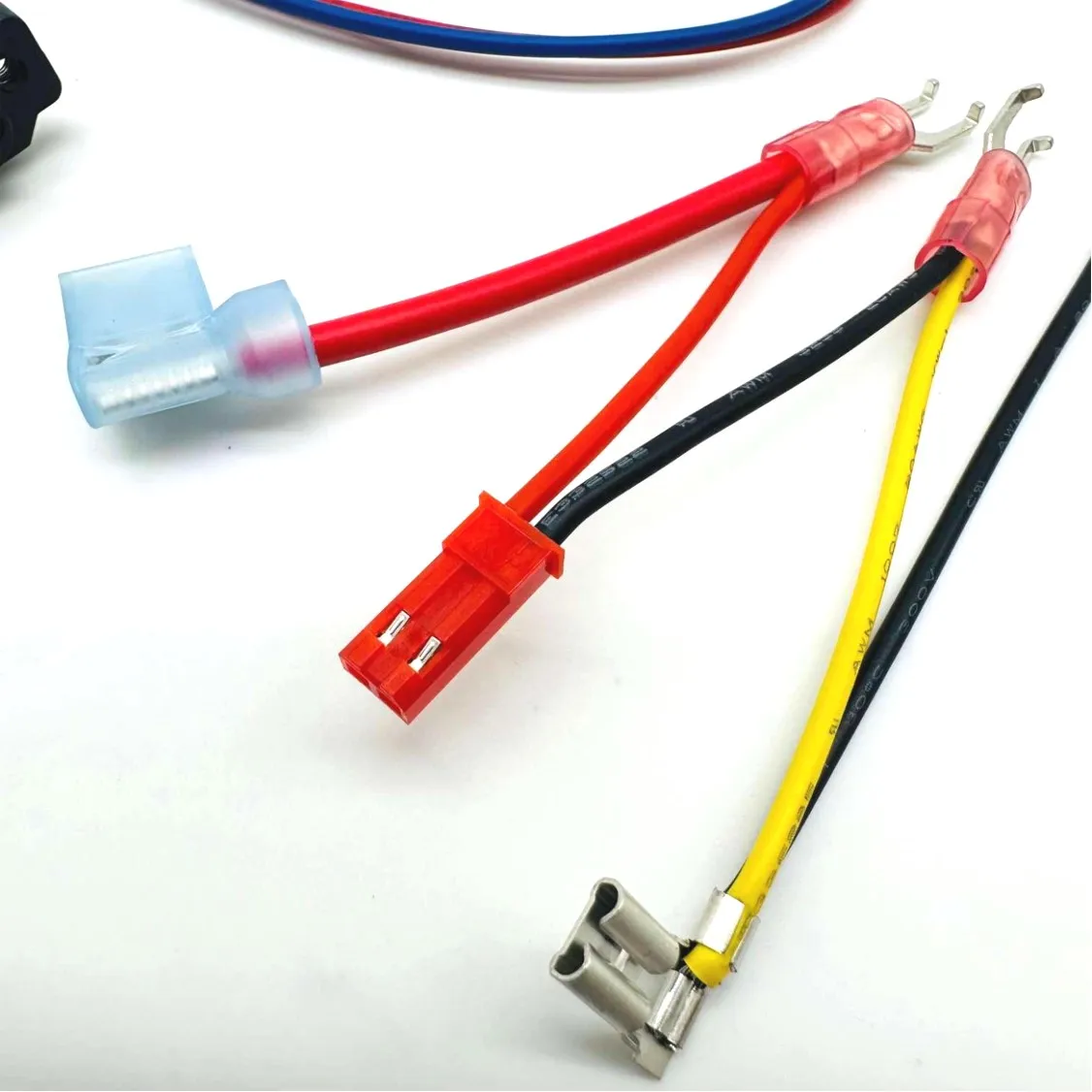

• Connectors 2-3: Nylon-insulated flag/spade connectors *3PCS each, resistant to 105°C temperatures.

• Connector 4: 187 series female flag connectors *2PCS for tool-free terminal integration.

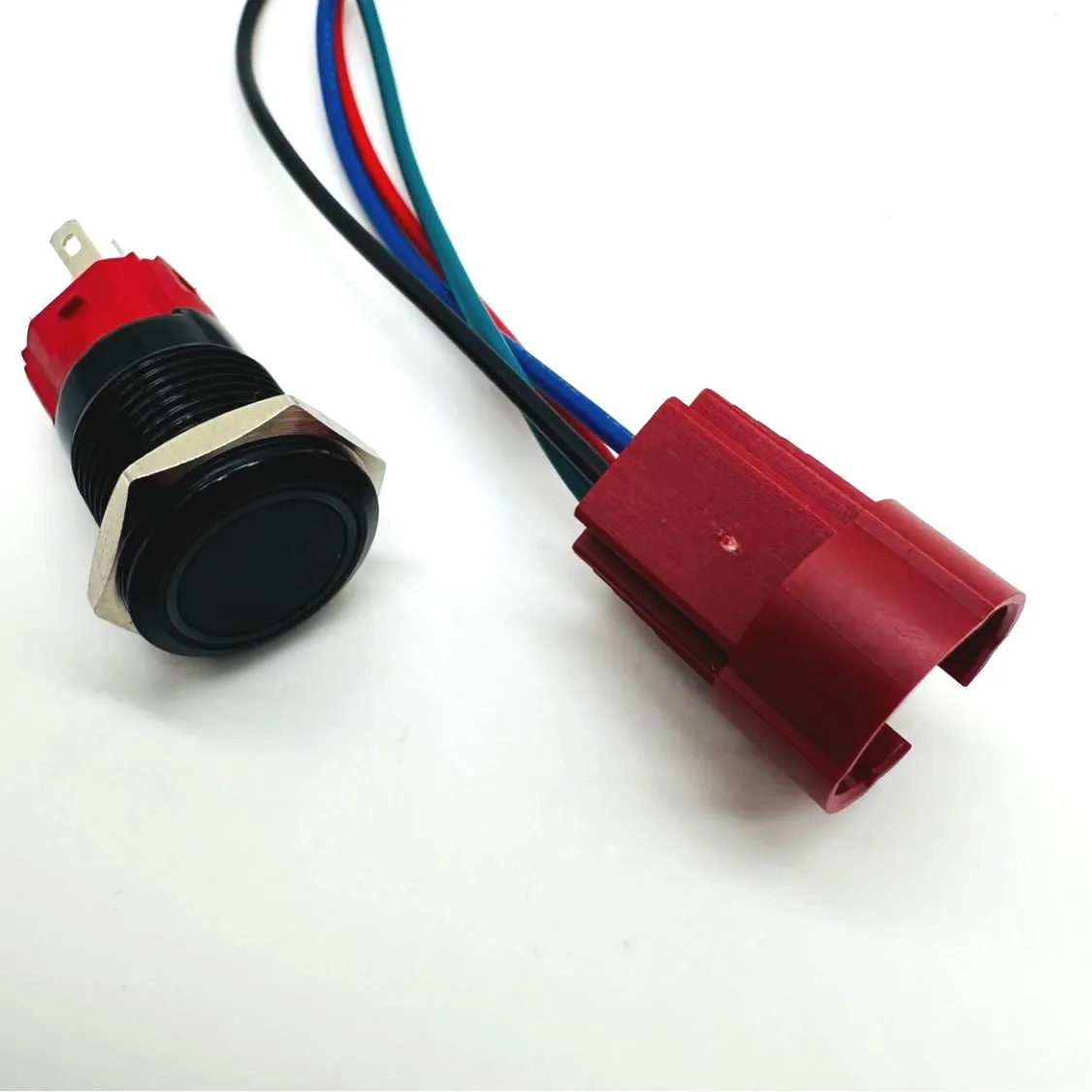

• Connector 5: M16 switch housing with 5A ON/OFF LED switch (IP65-rated, 12-24V DC).

• Packaging: Individually sealed in static-dissipative PE bags, protected by tear-proof ballistic outer layers, and shipped in reinforced cartons.

Rigorous Testing & Compliance
Every Equipment Control cable undergoes 100% electrical testing, including continuity checks, load cycling, and insulation resistance validation. Compliant with RoHS & REACH standards, it’s engineered for eco-safe operation in sensitive industrial environments. With flexible MOQs (as low as 100 units) and 7-10 day lead times, we empower OEMs and repair teams to maintain uptime without inventory bottlenecks.

Tailored for Your Machinery
Why tolerate one-size-fits-all solutions? Our Custom Cable services allow:

• Swapping UL1015#16AWG for higher-gauge wires (e.g., #14AWG) in high-amp setups.

• Adding braided shielding to 1007#20*5C for EMI-heavy environments.

• Customizing connector layouts (e.g., replace XT60 with Anderson SB50 for EV compatibility).
  From Industrial Cable bundles for factory robots to retrofitted Equipment Control Cable kits, we adapt to your exact needs.

Why Choose This Switch Harness?
Combining industrial-grade materials with plug-and-play simplicity, this harness eliminates downtime in critical systems. The M16 LED switch provides clear operational feedback, while nylon-insulated connectors prevent corrosion in humid or oily conditions. Trust a Custom Cable built to outlast your machinery—backed by a 3-year warranty and 24/7 technical support.
